TL32H150, Timing Pulley

TL32H150 - Cast Iron Imperial Pitch Pulleys

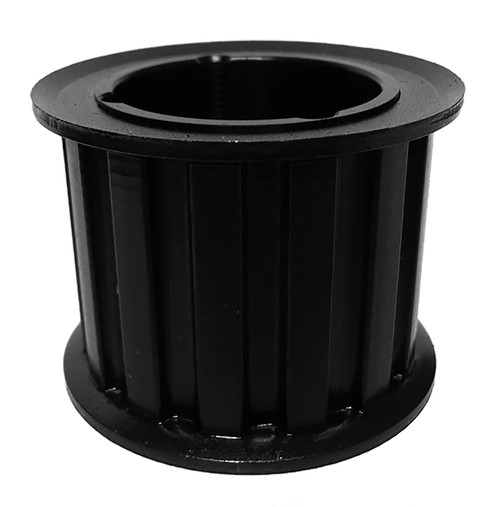

TL32H150

Click to Enlarge

TL32H150, Timing Pulley, Cast Iron, Black Oxide,

Learn more about TL32H150 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number TL32H150
Teeth 32
Tooth Style H
For Belt Width (in) 1.5000
Type 3F
Material Ductile Iron
Finish Black Oxide
Flange Material Steel
Bore Type TL
Bore (in) 2517
Pitch Diameter (in) 5.093
Outside Diameter (in) 5.039
Flange Diameter (in) 5.320
Face Width (in) 1.312
Overall Length (in) 1.312
Min. Bore (in) 0.500
Pulley Belt Width (in) 1.062
Unit System Inch
Bushing 2517
P.D. (mm) 129.00
O.D. (mm) 128.00
MOQ 1
Weight (lb) 5.29
Part Number Cross Reference TL32H150, TB32H150, 32 H 150 TL, 113673, TL32H150, TB 32-H-150, P32H150-2517, TL32H150
