TL32L075, Timing Pulley

TL32L075 - Cast Iron Imperial Pitch Pulleys

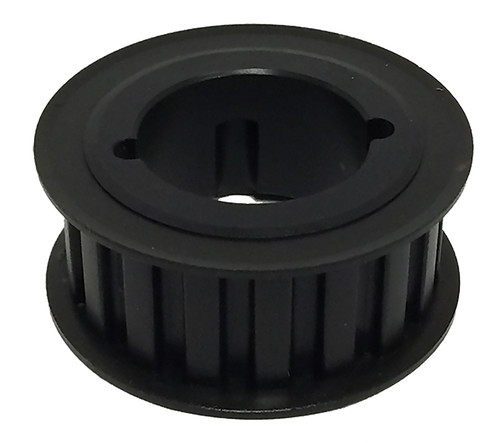

TL32L075

Click to Enlarge

TL32L075, Timing Pulley, Cast Iron, Black Oxide,

Learn more about TL32L075 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number TL32L075
Teeth 32
Tooth Style L
For Belt Width (in) 0.7500
Type 3F
Material Ductile Iron
Finish Black Oxide
Flange Material Steel
Bore Type TL
Bore (in) 1610
Pitch Diameter (in) 3.820
Outside Diameter (in) 3.790
Flange Diameter (in) 4.044
Face Width (in) 1.000
Overall Length (in) 1.000
Min. Bore (in) 0.500
Pulley Belt Width (in) 0.820
Unit System Inch
Bushing 1610
P.D. (mm) 97.00
O.D. (mm) 96.30
MOQ 1
Weight (lb) 1.92
Part Number Cross Reference TL32L075, TB32L075 , 32 L 075 TL, TL32L075 1610, 20182550, 113521, TL32L075 1610, TL32L075, TB 32-L-075, P32L075-1610, TL32L075

Related Products

Comparable to: TL32L075, TB32L075 , 32 L 075 TL, TL32L075 1610, 20182550, 113521, TL32L075 1610, TL32L075, TB 32-L-075, P32L075-1610, TL32L075
