TL40H300 Imperial Pitch Pulleys

TL40H300, 78817099, 113776, P40H300-2517

Product Details for TL40H300

Comparable to: TL40H300, 78817099, 113776, P40H300-2517

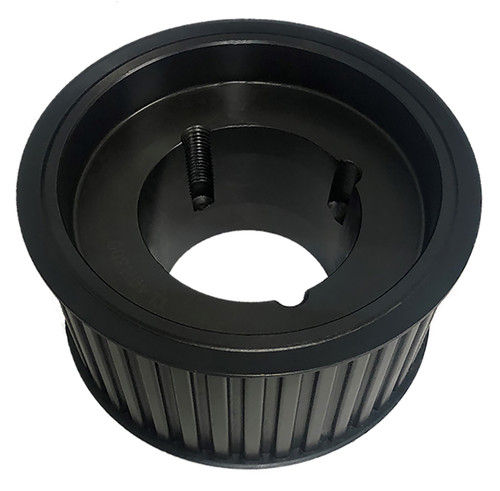

TL40H300, Timing Pulley, Powerhouse Timing, 2517 Bushing, Cast Iron

Specifications

Product Number TL40H300
Teeth 40
Tooth Style H
For Belt Width (in) 3.000
Type E1
Material Cast Iron
Finish Black Oxide
Flange Material Steel
Bore Type TL
Bore (in) 2517
Pitch Diameter (in) 6.366
Outside Diameter (in) 6.312
Flange Diameter (in) 6.600
Face Width (in) 3.375
Overall Length (in) 3.375
Pulley Belt Width (in) 3.140
Unit System Inch
Bushing 2517
Weight (lb) 9.90
List Price (1-9 Qty.) (USD) 148.5
Discount Price (10-24 Qty.) (USD) 137.36
Discount Price (25-49 Qty.) (USD) 123.63
Part Number Cross Reference TL40H300, 78817099, 113776, P40H300-2517

Documentation

Download Catalog 2015_BBMAN_CATALOG_64.pdf
General Characteristics gen_char.html
Pulley Tolerances pulley_tol.html
Part Number Nomenclature Chart part_number_explain.pdf
Keyway Standards and Tolerances keyway_specs.pdf
Drive Alignment Guide proper alignment.pdf
For custom parts click here custom.html
REACH Certification TL40H300_REACH_cert
RoHS Certification TL40H300_RoHS_cert
