TL48H100, Timing Pulley

TL48H100 - Cast Iron Imperial Pitch Pulleys

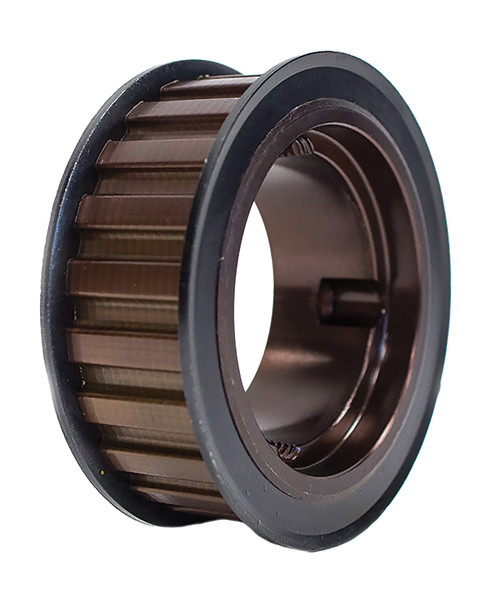

TL48H100

Click to Enlarge

TL48H100, Timing Pulley, Cast Iron, Black Oxide,

Learn more about TL48H100 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number TL48H100
Teeth 48
Tooth Style H
For Belt Width (in) 1.0000
Type B1F
Material Ductile Iron
Finish Black Oxide
Flange Material Steel
Bore Type TL
Bore Description Bored for 2517 Bushing
Pitch Diameter (in) 7.639
Outside Diameter (in) 7.585
Flange Diameter (in) 7.867
Face Width (in) 1.812
Overall Length (in) 1.812
Min. Bore (in) 0.5
Pulley Belt Width (in) 1.562
Unit System Inch
Bushing 2517
P.D. (mm) 194.00
O.D. (mm) 192.70
MOQ 1
Weight (lb) 13.17
Part Number Cross Reference TL48H100, TB48H100, 49 H 100 TL, TL48H100-2517 DYNA-SYNC SPKT, TL48H100, TL48H100, TB 48-H-100, P48H100-2517, TL48H100, 113635, TL48H100

Comparable to: TL48H100, TB48H100, 49 H 100 TL, TL48H100-2517 DYNA-SYNC SPKT, TL48H100, TL48H100, TB 48-H-100, P48H100-2517, TL48H100, 113635, TL48H100
