TL48H300, Timing Pulley

TL48H300 - Cast Iron Imperial Pitch Pulleys

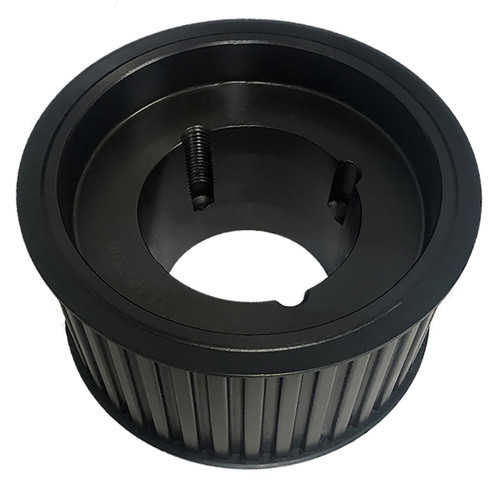

TL48H300

Click to Enlarge

TL48H300, Timing Pulley, Cast Iron, Black Oxide,

Learn more about TL48H300 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number TL48H300
Teeth 48
Tooth Style H
For Belt Width (in) 3.0000
Type E-1
Material Ductile Iron
Finish Black Oxide
Flange Material Steel
Bore Type TL
Bore Description Bored for 3020 Bushing
Pitch Diameter (in) 7.639
Outside Diameter (in) 7.585
Flange Diameter (in) 7.867
Face Width (in) 3.375
Overall Length (in) 3.375
Min. Bore (in) 0.875
Pulley Belt Width (in) 3.140
Unit System Inch
Bushing 3020
P.D. (mm) 194.00
O.D. (mm) 192.70
MOQ 1
Weight (lb) 26.45
Part Number Cross Reference TL48H300, TB48H300, 48 H 300 TL, TL48H300-3020 DYNA-SYNC SPKT, TL48H300, TL48H300, TB 48-H-300, P48H300-3020, TL48H300, 113782, TL48H300

Comparable to: TL48H300, TB48H300, 48 H 300 TL, TL48H300-3020 DYNA-SYNC SPKT, TL48H300, TL48H300, TB 48-H-300, P48H300-3020, TL48H300, 113782, TL48H300
