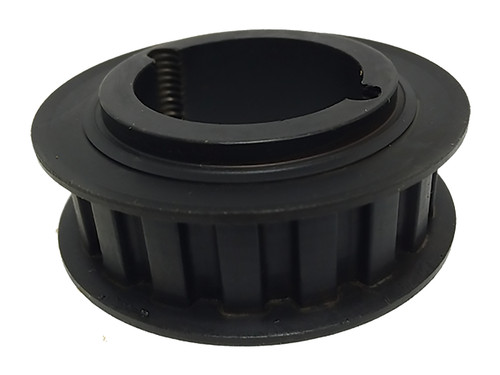

TL48L050, Timing Pulley

TL48L050

Click to Enlarge

TL48L050, Timing Pulley, Cast Iron, Black Oxide,

Learn more about TL48L050 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number	TL48L050
Teeth	48
Tooth Style	L
For Belt Width (in)	0.5000
Type	8F
Material	Ductile Iron
Finish	Black Oxide
Flange Material	Steel
Bore Type	TL
Bore Description	Bored for 2012 Bushing
Pitch Diameter (in)	5.730
Outside Diameter (in)	5.700
Flange Diameter (in)	5.950
Face Width (in)	0.750
Overall Length (in)	1.250
Min. Bore (in)	0.5
Pulley Belt Width (in)	0.570
Unit System	Inch
Bushing	2012
P.D. (mm)	146.00
O.D. (mm)	144.80
MOQ	1
Weight (lb)	4.78
Part Number Cross Reference	TL48L050, TL-48L050-2012, TB48L050, 48 L 050 TL, TL48L050-2012 DYNA-SYNC SPKT, TL48L050, TL48L050, TB 48-L-050, P48L050-2012, TL48L050, 113484, TL48L050
