TL48L075, Timing Pulley

TL48L075 - Cast Iron Imperial Pitch Pulleys

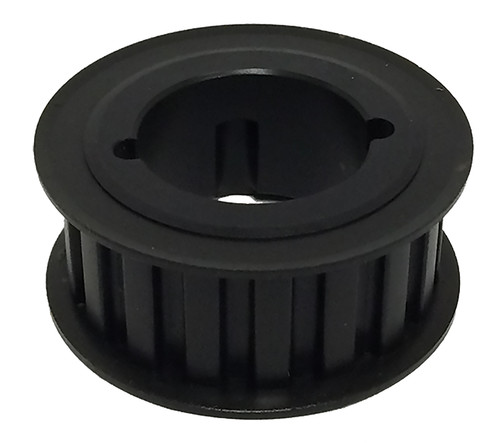

TL48L075

Click to Enlarge

TL48L075, Timing Pulley, Cast Iron, Black Oxide,

Learn more about TL48L075 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number TL48L075
Teeth 48
Tooth Style L
For Belt Width (in) 0.7500
Type 8F
Material Ductile Iron
Finish Black Oxide
Flange Material Steel
Bore Type TL
Bore (in) 2012
Pitch Diameter (in) 5.730
Outside Diameter (in) 5.700
Flange Diameter (in) 5.000
Face Width (in) 1.000
Overall Length (in) 1.250
Min. Bore (in) 0.500
Pulley Belt Width (in) 0.820
Unit System Inch
Bushing 2012
P.D. (mm) 146.00
O.D. (mm) 144.80
MOQ 1
Weight (lb) 5.55
Part Number Cross Reference TL48L075, TB48L075, 48 L 075 TL, 113533, TL48L075, TB 48-L-075, P48L075-2012, TL48L075
