TL60H150, Timing Pulley

TL60H150 - Cast Iron Imperial Pitch Pulleys

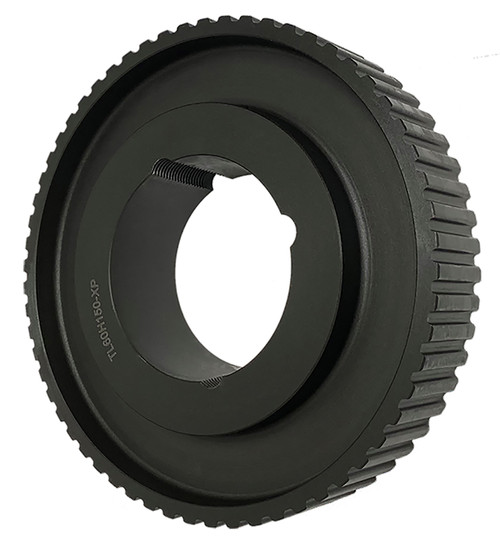

TL60H150

Click to Enlarge

TL60H150, Timing Pulley, Cast Iron, Black Oxide,

Learn more about TL60H150 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number TL60H150
Teeth 60
Tooth Style H
For Belt Width (in) 1.5000
Type E2
Material Cast Iron
Finish Black Oxide
Bore Type TL
Bore Description Bored for 3020 Bushing
Pitch Diameter (in) 9.549
Outside Diameter (in) 9.495
Face Width (in) 1.812
Overall Length (in) 2.000
Min. Bore (in) 0.875
Pulley Belt Width (in) 1.812
Unit System Inch
Bushing 3020
P.D. (mm) 243.00
O.D. (mm) 241.20
MOQ 1
Weight (lb) 17.79
Part Number Cross Reference TL60H150, TB60H150, 60 H 150 TL, TL60H150-3020 DYNA-SYNC SPKT, TL60H150, TL60H150, TB 60-H-150, P60H150-3020, TL60H150, 113686, TL60H150

Comparable to: TL60H150, TB60H150, 60 H 150 TL, TL60H150-3020 DYNA-SYNC SPKT, TL60H150, TL60H150, TB 60-H-150, P60H150-3020, TL60H150, 113686, TL60H150
