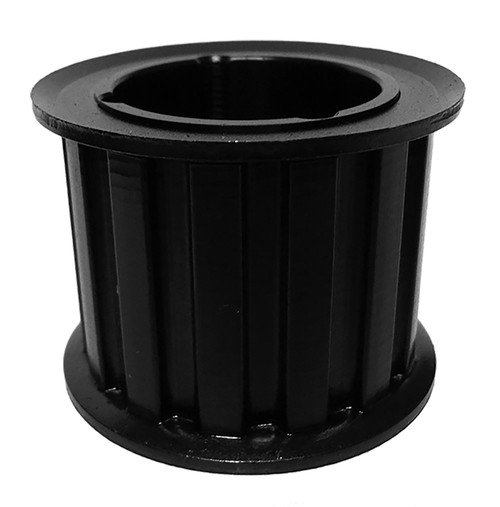

TL84H150, Timing Pulley

TL84H150

Click to Enlarge

TL84H150, Timing Pulley, Cast Iron, Black Oxide,

Learn more about TL84H150 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number	TL84H150
Teeth	84
Tooth Style	H
For Belt Width (in)	1.5000
Type	7
Material	Cast Iron
Finish	Black Oxide
Bore Type	TL
Bore Description	Bored for 3020 Bushing
Pitch Diameter (in)	13.369
Outside Diameter (in)	13.315
Face Width (in)	1.812
Overall Length (in)	1.812
Min. Bore (in)	0.875
Pulley Belt Width (in)	1.812
Unit System	Inch
Bushing	3020
P.D. (mm)	340.00
O.D. (mm)	338.20
MOQ	1
Weight (lb)	29.06
Part Number Cross Reference	TL84H150, 84 H 150 TL, TL84H150-3020 DYNA-SYNC SPKT, TL84H150, TL84H150, TB 84-H-150, P84H150-3020, TL84H150, 113688, TL84H150
