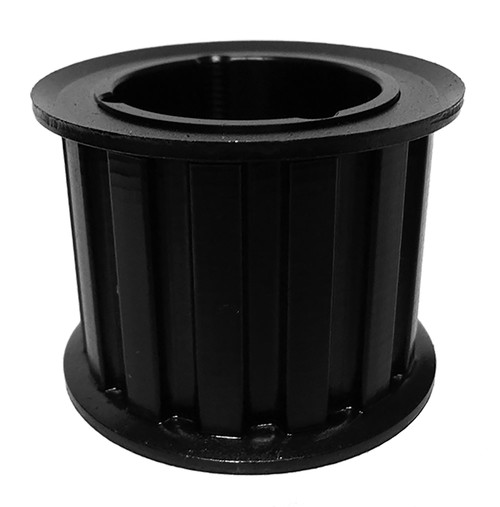

TL96H150, Timing Pulley

TL96H150 - Cast Iron Imperial Pitch Pulleys

TL96H150

Click to Enlarge

TL96H150, Timing Pulley, Cast Iron, Black Oxide,

Learn more about TL96H150 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number TL96H150
Teeth 96
Tooth Style H
For Belt Width (in) 1.5000
Type C-2
Material Cast Iron
Finish Black Oxide
Bore Type TL
Bore Description Bored for 3020 Bushing
Pitch Diameter (in) 15.279
Outside Diameter (in) 15.225
Face Width (in) 1.812
Overall Length (in) 1.812
Min. Bore (in) 0.875
Pulley Belt Width (in) 1.812
Unit System Inch
Bushing 3020
P.D. (mm) 388.00
O.D. (mm) 386.70
MOQ 1
Weight (lb) 38.00
Part Number Cross Reference TL96H150, 96 H 150 TL, TL96H150, TB 96-H-150, TL96H150
