10-2P-PS2A, Timing Pulley Stock

10-2P-PS2A, A6A50M010GT05, A 6A50M010GT05, 2MR-10S-PS-2A

Product Details for 10-2P-PS2A

Comparable to: A 6A50M010GT05, A6A50M010GT05, 2MR-10S-PS-2A

Click to Enlarge

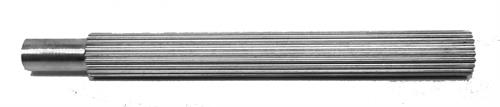

10-2P-PS2A, Timing Pulley Stock, Aluminum, Clear Anodized

Learn more about 10-2P-PS2A Timing Pulley Stocks and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number 10-2P-PS2A
Teeth 10
Tooth Style 2P
Material Aluminum
Finish Clear Anodized
Pitch Diameter (in) 0.251
Outside Diameter (in) 0.231
Overall Length (in) 3.000
Unit System Inch
Min. Usable Length (in) 2.000
P.D. (mm) 6.40
O.D. (mm) 5.90
MOQ 1
Weight (lb) 0.01
Part Number Cross Reference A 6A50M010GT05, A6A50M010GT05, 2MR-10S-PS-2A
Shank Length (in) 1.0000
