10-3M06-6CA1, Timing Pulley

10-3M06-6CA1 - Aluminum Powerhouse®HTD® Pulleys

10-3M06-6CA1

Click to Enlarge

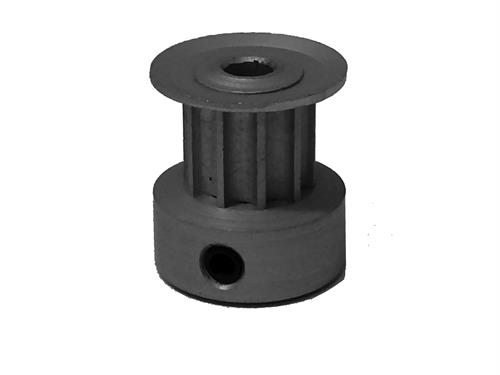

10-3M06-6CA1, Timing Pulley, Aluminum, Clear Anodized

Learn more about 10-3M06-6CA1 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number 10-3M06-6CA1
Teeth 10
Tooth Style HTD3mm
For Belt Width (mm) 6.00
Type 6C
Material Aluminum
Finish Clear Anodized
Flange Material Aluminum
Bore Type Finished Bore
Bore (in) 0.125
Bore Description 1/8 Inch Finished Bore
Pitch Diameter (in) 0.376
Outside Diameter (in) 0.346
Flange Diameter (in) 0.505
Face Width (in) 0.327
Overall Length (in) 0.562
Hub Diameter (in) 0.505
Min. Bore (in) 0.125
Pulley Belt Width (in) 0.280
Unit System Inch
P.D. (mm) 10.00
O.D. (mm) 8.80
MOQ 1
Weight (lb) 0.01
Part Number Cross Reference A 6A23-010DF0604, A6A23-010DF0604, P10-3M-06AL, 10M3-L06M-6FC, PT010F04L06R, 10-3M-06 X 1/8, 10-3M06-6CA1, 10-3M06-6CA1
Set Screw Quantity 1

Related Products

Comparable to: A 6A23-010DF0604, A6A23-010DF0604, P10-3M-06AL, 10M3-L06M-6FC, PT010F04L06R, 10-3M-06 X 1/8, 10-3M06-6CA1, 10-3M06-6CA1
