100MP037-6A4, Timing Pulley

100MP037-6A4 - Aluminum Imperial Pitch Pulleys

100MP037-6A4

Click to Enlarge

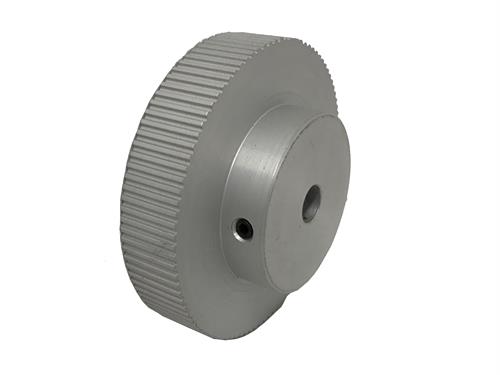

100MP037-6A4, Timing Pulley, Aluminum, Clear Anodized

Learn more about 100MP037-6A4 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number 100MP037-6A4
Teeth 100
Tooth Style MXL
For Belt Width (in) 0.3750
Type 6
Material Aluminum
Finish Clear Anodized
Bore Type Finished Bore
Bore (in) 0.313
Bore Description 5/16 Inch Finished Bore
Pitch Diameter (in) 2.546
Outside Diameter (in) 2.526
Face Width (in) 0.500
Overall Length (in) 0.875
Hub Diameter (in) 1.500
Min. Bore (in) 0.3125
Pulley Belt Width (in) 0.500
Unit System Inch
P.D. (mm) 65.00
O.D. (mm) 64.20
MOQ 1
Weight (lb) 0.35
Part Number Cross Reference A 6A16-100NF3710, A6A16-100NF3710, 100MP-037 5/16 6, 100MXL307-2A X 5/16, 100MP037-6A4, 100MP037-6A4
Set Screw Quantity 2

Related Products

Comparable to: A 6A16-100NF3710, A6A16-100NF3710, 100MP-037 5/16 6, 100MXL307-2A X 5/16, 100MP037-6A4, 100MP037-6A4
