100MP037M6A8, Timing Pulley

100MP037M6A8 - Aluminum Metric Pulleys

Product Details for 100MP037M6A8

Comparable to: A 6A16M100NF9508, A6A16M100NF9508

Click to Enlarge

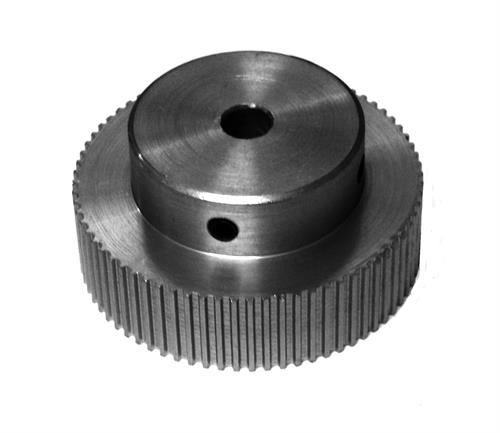

100MP037M6A8, Timing Pulley, Aluminum, Clear Anodized

Learn more about 100MP037M6A8 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number 100MP037M6A8
Teeth 100
Tooth Style MXL
For Belt Width (in) 0.3750
Type 6
Material Aluminum
Finish Clear Anodized
Bore Type Finished Bore
Bore (mm) 8.00
Face Width (in) 0.500
Pulley Belt Width (mm) 12.70
Unit System Metric
P.D. (mm) 64.70
O.D. (mm) 64.20
Overall Length (mm) 22.20
Hub Diameter (mm) 38.10
MOQ 1
Weight (lb) 0.32
Part Number Cross Reference A 6A16M100NF9508, A6A16M100NF9508
Set Screw Quantity 2
