1050-D5P-15 Powerhouse™ Belts

1050-D5P-15, TP5MR-1050-15

Product Details for 1050-D5P-15

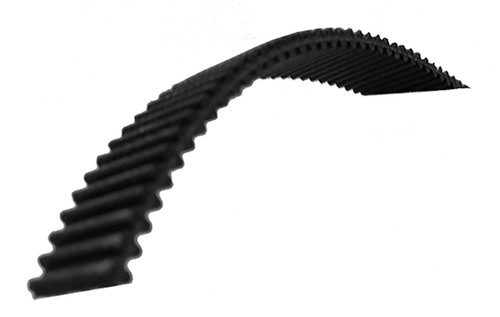

1050-D5P-15, Timing Belt, Powerhouse, Neoprene / Fiberglass, Double Sided Timing Belt

Specifications

Product Number 1050-D5P-15
Teeth 210
Tooth Style GT 5mm
Unit System Metric
Belt Type Double Sided
Belt Width (mm) 15.00
Pitch Length (mm) 1,050.00
Construction Neoprene
Reinforcement Fiberglass
Weight (lb) 0.14
Part Number Cross Reference 1050-D5P-15, TP5MR-1050-15

Documentation

Download Catalog 2015_BBMAN_CATALOG_240.pdf
General Characteristics gen_char.html
Pulley Tolerances pulley_tol.html
TruMotion Features trumotionsyncdata_final_3-8-07.pdf
Belt Tensile Properties trumotionsyncdata_final_3-8-07.pdf
For custom parts click here custom.html
REACH Certification 1050-D5P-15_REACH_cert
RoHS Certification 1050-D5P-15_RoHS_cert
