108V1900M, V-Belt Pulley

108V1900M, QD10/8V19.

108V1900M

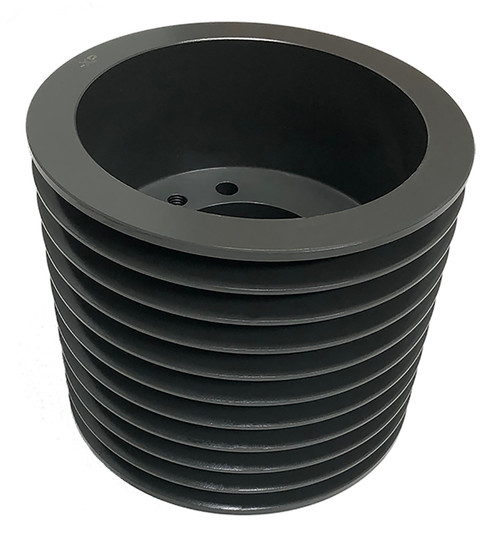

108V1900M, V-Belt Pulley, Cast Iron

B&B Manufacturing carries 108V1900M to accommodate the different industries we serve. Contact us today for a free quote!

Specifications

Product Number 108V1900M
Type A-2
Material Cast Iron
Bore Type QD
Bore Description Bored for M Bushing
Pitch Diameter (in) 18.800
Outside Diameter (in) 19.000
Face Width (in) 11.625
Min. Bore (in) 2
Unit System Inch
Bushing M
E (in) 2.3437
L (in) 6.75
M (in) 2.5312
MOQ 1
Sheave Type 8V
For Belt Type 8V
Weight (lb) 301.00
Part Number Cross Reference QD10/8V19.00, 8V19.0-10-M PULLEY, 20180965, 10-8V19.00-M SHEAVE, 8V19010, 10-8V19.00, 108V1900M, 455479, 108V1900M
Grooves 10

Related Products

Comparable to: QD10/8V19.00, 8V19.0-10-M PULLEY, 20180965, 10-8V19.00-M SHEAVE, 8V19010, 10-8V19.00, 108V1900M, 455479, 108V1900M
