10MP025M6CA3 Metric Pulleys

10MP025M6CA3

Product Details for 10MP025M6CA3

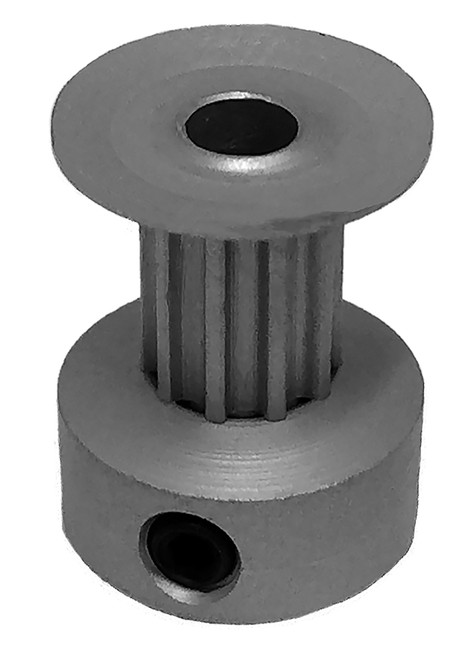

10MP025M6CA3, Timing Pulley, Teeth;10 | Pitch;MXL | For Belt Width;0.25 inch | Configuration;Standard Hub Serves as 2nd Flange and 1 Flange | Bore Size;3 mm | Material;Clear Anodized Aluminum

Specifications

Product Number 10MP025M6CA3
Teeth 10
Tooth Style MXL
For Belt Width (in) 0.250
Type 6C
Material Aluminum
Finish Clear Anodized
Flange Material Aluminum
Bore Type Finished Bore
Bore (mm) 3.00
Set Screw 1 x M2
Pulley Belt Width (mm) 7.20
Unit System Inch
P.D. (mm) 6.50
O.D. (mm) 6.00
Flange Diameter (mm) 10.80
Overall Length (mm) 14.30
Hub Diameter (mm) 10.80
Weight (lb) 0.02
List Price (1-9 Qty.) (USD) $7.41
Discount Price (10-24 Qty.) (USD) $6.85
Discount Price (25-49 Qty.) (USD) $5.00
Discount Price (50-99 Qty.) (USD) $4.45
Discount Price (100-249 Qty.) (USD) $4.08
Part Number Cross Reference A6A16M010DF6003 A 6A16M010DF6003

Documentation

General Characteristics gen_char.html
Pulley Tolerances pulley_tol.html
Part Number Nomenclature Chart part_number_explain.pdf
Drive Alignment Guide proper alignment.pdf
For custom parts click here custom.html
