10T10-PS140A, Timing Pulley Stock

10T10-PS140A, A6A38M010T14, A 6A38M010T14, 10T10-PS-140

Product Details for 10T10-PS140A

Comparable to: A 6A38M010T14, A6A38M010T14, 10T10-PS-140, T1010

Click to Enlarge

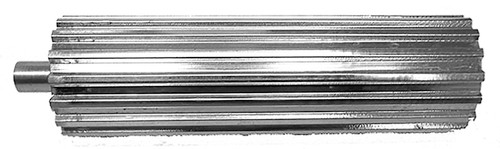

10T10-PS140A, Timing Pulley Stock, Aluminum, Clear Anodized

Learn more about 10T10-PS140A Timing Pulley Stocks and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number 10T10-PS140A
Teeth 10
Tooth Style T10mm
Material Aluminum
Finish Clear Anodized
Pitch Diameter (in) 1.259
Outside Diameter (in) 1.180
Overall Length (in) 7.100
Unit System Metric
Min. Usable Length (in) 5.500
P.D. (mm) 32.00
O.D. (mm) 30.00
Min. Usable Length (mm) 140.00
Overall Length (mm) 165.00
MOQ 1
Weight (lb) 0.52
Part Number Cross Reference A 6A38M010T14, A6A38M010T14, 10T10-PS-140, T1010
Shank Length (in) 1.6000
