10XL037-3FA4, Timing Pulley

10XL037-3FA4

10XL037-3FA4

10XL037-3FA4 Line Drawing

Click to Enlarge

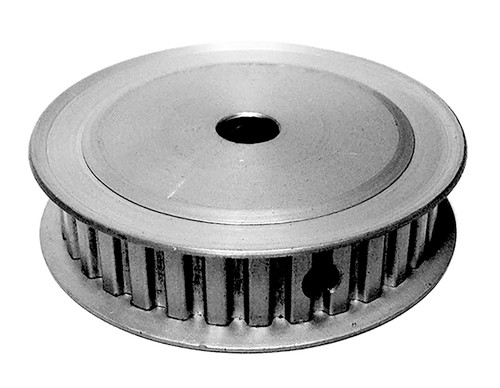

10XL037-3FA4, Timing Pulley, Aluminum, Clear Anodized

B&B Manufacturing carries 10XL037-3FA4 to accommodate the different industries we serve. Contact us today for a free quote!

Specifications

Product Number 10XL037-3FA4
Teeth 10
Tooth Style XL
For Belt Width (in) 0.3750
Type 3F
Material Aluminum
Finish Clear Anodized
Flange Material Aluminum
Bore Type Finished Bore
Bore (in) 0.313
Bore Description 5/16 Inch Finished Bore
Pitch Diameter (in) 0.637
Outside Diameter (in) 0.617
Flange Diameter (in) 0.875
Face Width (in) 0.563
Overall Length (in) 0.563
Min. Bore (in) 0.3125
Unit System Inch
P.D. (mm) 16.00
O.D. (mm) 15.70
Flange Diameter (mm) 22.23
MOQ 1
Weight (lb) 0.01
Part Number Cross Reference 10XL037-3FA4, 10XL037-3FA4
Set Screw Quantity 1
