11XL037-6FS2, Timing Pulley

11XL037-6FS2 - Steel Imperial Pitch Pulleys

11XL037-6FS2

Click to Enlarge

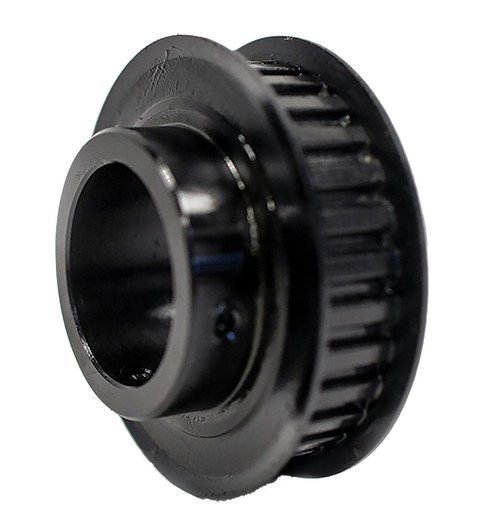

11XL037-6FS2, Timing Pulley, Steel, Black Oxide

Learn more about 11XL037-6FS2 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number 11XL037-6FS2
Teeth 11
Tooth Style XL
For Belt Width (in) 0.3750
Type 6F
Material Steel
Finish Black Oxide
Flange Material Steel
Bore Type Minimum Plain Bore
Bore (in) 3/16 Inch Finished Bore
Pitch Diameter (in) 0.700
Outside Diameter (in) 0.680
Flange Diameter (in) 0.938
Face Width (in) 0.563
Overall Length (in) 0.812
Hub Diameter (in) 0.500
Min. Bore (in) 0.1875
Pulley Belt Width (in) 0.430
Unit System Inch
P.D. (mm) 18.00
O.D. (mm) 17.30
MOQ 1
Weight (lb) 0.07
Part Number Cross Reference A 6C3-11DF03706, A6C3-11DF03706, PB11XL037, 11XL037, 11XL037-3/16, 20178895, 113401, 11XL037, 11XL037MPB, 11XL037, P11XL037, 11XL037-6FS2
Set Screw Quantity 2

Comparable to: A 6C3-11DF03706, A6C3-11DF03706, PB11XL037, 11XL037, 11XL037-3/16, 20178895, 113401, 11XL037, 11XL037MPB, 11XL037, P11XL037, 11XL037-6FS2

Documentation

Download Catalog
General Characteristics
Pulley Tolerances
Part Number Nomenclature Chart
Drive Alignment Guide
For custom parts click here
REACH Certification
RoHS Certification
