120LH050, Timing Pulley

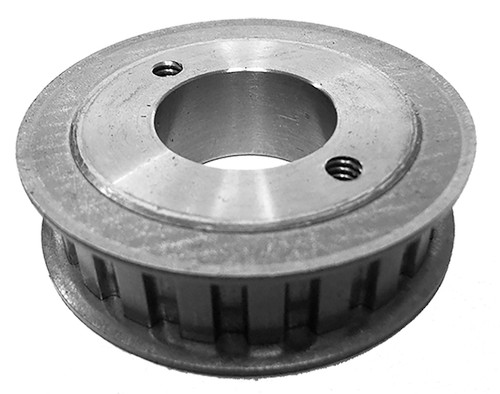

120LH050 - Cast Iron Imperial Pitch Pulleys

120LH050

120LH050 - Cast Iron Imperial Pitch Pulleys Line Drawing

Click to Enlarge

120LH050, Timing Pulley, Cast Iron

Learn more about 120LH050 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number 120LH050
Teeth 120
Tooth Style L
For Belt Width (in) 0.5000
Type 17
Material Cast Iron
Bore Type Split Taper
Bore Description Bored for H Bushing
Pitch Diameter (in) 14.324
Outside Diameter (in) 14.294
Face Width (in) 0.750
Overall Length (in) 1.500
Min. Bore (in) 0.375
Unit System Inch
Bushing H
P.D. (mm) 364.00
O.D. (mm) 363.10
MOQ 1
Weight (lb) 8.50
Part Number Cross Reference 120LH050, 120LH050, 120LH050
