14L075-6FS5, Timing Pulley

14L075-6FS5

Click to Enlarge

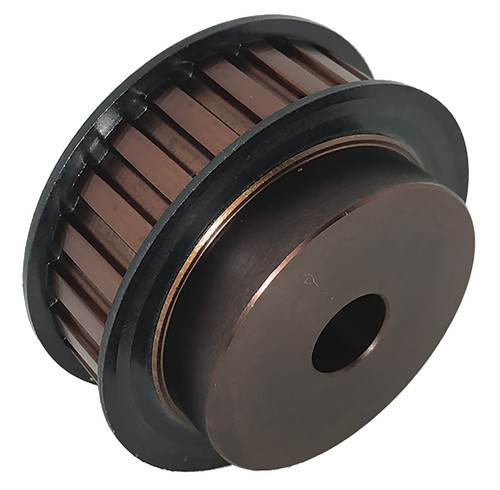

14L075-6FS5, Timing Pulley, Steel, Black Oxide

Learn more about 14L075-6FS5 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number	14L075-6FS5
Teeth	14
Tooth Style	L
For Belt Width (in)	0.7500
Type	6F
Material	Steel
Finish	Black Oxide
Flange Material	Steel
Bore Type	Minimum Plain Bore
Bore (in)	0.375
Bore Description	3/8 Inch Minimum Plain Bore
Pitch Diameter (in)	1.671
Outside Diameter (in)	1.641
Flange Diameter (in)	1.906
Face Width (in)	1.000
Overall Length (in)	1.500
Hub Diameter (in)	1.125
Min. Bore (in)	0.375
Pulley Belt Width (in)	0.820
Unit System	Inch
P.D. (mm)	42.00
O.D. (mm)	41.70
MOQ	1
Weight (lb)	0.70
Part Number Cross Reference	PB14L075, 14L075, 14LB075, 14L075-3/8, 20181894, 14L075 X 3/8 MPB, 14L075, 14L075MPB, P14L075, 35376227, P14L075-PB, 14L075-6FS5, 113501, 14L075-6FS5
