15-5M09M6A6, Timing Pulley

15-5M09M6A6

Click to Enlarge

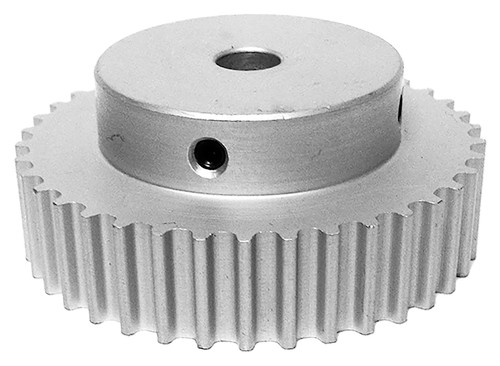

15-5M09M6A6, Timing Pulley, Aluminum, Clear Anodized

Learn more about 15-5M09M6A6 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number	15-5M09M6A6
Teeth	15
Tooth Style	HTD5mm
For Belt Width (mm)	9.00
Type	6
Material	Aluminum
Finish	Clear Anodized
Bore Type	Finished Bore
Bore Description	6 mm Finished Bore
Bore (mm)	6.00
Pitch Diameter (in)	0.940
Outside Diameter (in)	0.895
Face Width (in)	0.547
Pulley Belt Width (mm)	9.00
Unit System	Metric
P.D. (mm)	24.00
O.D. (mm)	22.70
Face Width (mm)	13.90
Overall Length (mm)	20.20
Hub Diameter (mm)	14.30
MOQ	1
Weight (lb)	0.03
Part Number Cross Reference	A 6A25M015NF0906, A6A25M015NF0906, 15-5M09M6A6, 15-5M09M6A6
Set Screw Quantity	2
