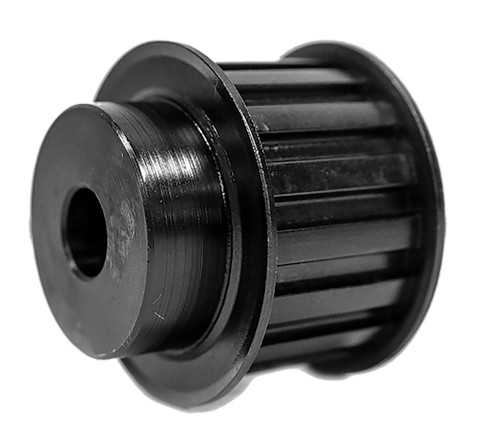

15L100-6FS6, Timing Pulley

15L100-6FS6

Click to Enlarge

15L100-6FS6, Timing Pulley, Steel, Black Oxide

Learn more about 15L100-6FS6 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number	15L100-6FS6
Teeth	15
Tooth Style	L
For Belt Width (in)	1.0000
Type	6F
Material	Steel
Finish	Black Oxide
Flange Material	Steel
Bore Type	Minimum Plain Bore
Bore (in)	0.500
Bore Description	1/2 Inch Minimum Plain Bore
Pitch Diameter (in)	1.790
Outside Diameter (in)	1.760
Flange Diameter (in)	2.031
Face Width (in)	1.250
Overall Length (in)	1.750
Hub Diameter (in)	1.344
Min. Bore (in)	0.5
Pulley Belt Width (in)	1.070
Unit System	Inch
P.D. (mm)	46.00
O.D. (mm)	44.70
MOQ	1
Weight (lb)	0.96
Part Number Cross Reference	PB15L100, 15L100, 15LB100, 15L100 X 1/2 MPB, 15L100, 15L100MPB, P15L100, 35376409, P15L100-PB, 15L100-6FS6, 114450, 15L100-6FS6
