15XL025M6FA8, Timing Pulley

15XL025M6FA8 - Aluminum Metric Pulleys

15XL025M6FA8

Click to Enlarge

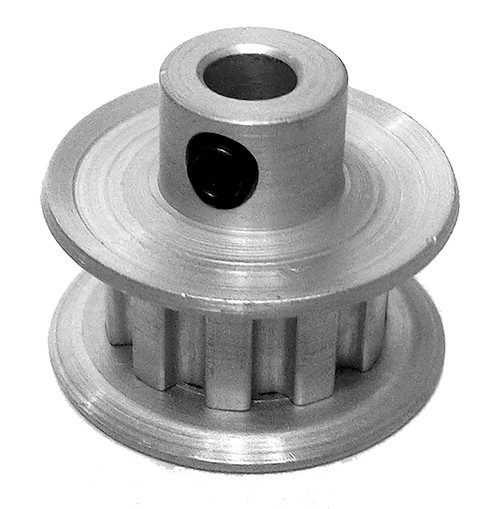

15XL025M6FA8, Timing Pulley, Aluminum, Clear Anodized

Learn more about 15XL025M6FA8 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number 15XL025M6FA8
Teeth 15
Tooth Style XL
For Belt Width (in) 0.2500
Type 6F
Material Aluminum
Finish Clear Anodized
Flange Material Aluminum
Bore Type Finished Bore
Bore (in) 8 mm Finished Bore
Bore (mm) 8.00
Pitch Diameter (in) 0.955
Outside Diameter (in) 0.935
Pulley Belt Width (mm) 7.90
Unit System Metric
P.D. (mm) 24.00
O.D. (mm) 23.70
Flange Diameter (mm) 30.00
Face Width (mm) 11.10
Overall Length (mm) 17.50
Hub Diameter (mm) 16.00
MOQ 1
Weight (lb) 0.04
Part Number Cross Reference 15XL025M6FA8
Set Screw Quantity 2
