15XL037-6FS3, Timing Pulley

15XL037-6FS3 - Steel Imperial Pitch Pulleys

15XL037-6FS3

Click to Enlarge

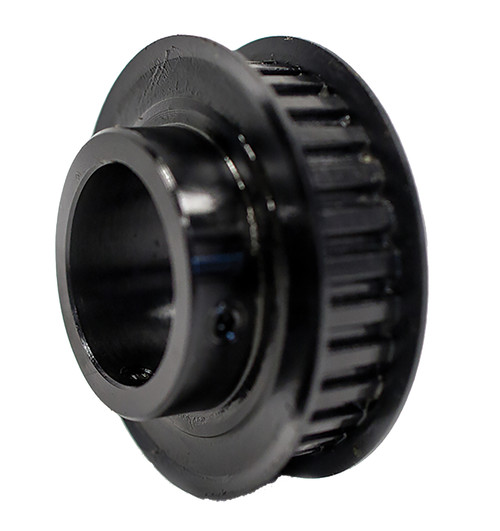

15XL037-6FS3, Timing Pulley, Steel, Black Oxide

Learn more about 15XL037-6FS3 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number 15XL037-6FS3
Teeth 15
Tooth Style XL
For Belt Width (in) 0.3750
Type 6F
Material Steel
Finish Black Oxide
Flange Material Steel
Bore Type Minimum Plain Bore
Bore (in) 1/4 Inch Minimum Plain Bore
Pitch Diameter (in) 0.955
Outside Diameter (in) 0.935
Flange Diameter (in) 1.188
Face Width (in) 0.563
Overall Length (in) 0.812
Hub Diameter (in) 0.625
Min. Bore (in) 0.250
Pulley Belt Width (in) 0.430
Unit System Inch
P.D. (mm) 24.00
O.D. (mm) 23.70
MOQ 1
Weight (lb) 0.12
Part Number Cross Reference A6C3-15DF03708, A6C3-15DF03708, PB15XL037, 15XL037, 15XL037-1S X 1/4, 15XLB037S, 15XL037-1/4, 20181901, 113404, 15XL037, 15XL037MPB, 15XL037, P15XL037, 15XL037-6FS3
Set Screw Quantity 2

Comparable to: A6C3-15DF03708, A6C3-15DF03708, PB15XL037, 15XL037, 15XL037-1S X 1/4, 15XLB037S, 15XL037-1/4, 20181901, 113404, 15XL037, 15XL037MPB, 15XL037, P15XL037, 15XL037-6FS3
