16T2.5/48-0, Timing Pulley

16T2.5/48-0 - Aluminum Metric Pulleys

Product Details for 16T2.5/48-0

Comparable to: 16T2.5/48-0, A 6A32M048NF0606, A6A32M048NF0606

Click to Enlarge

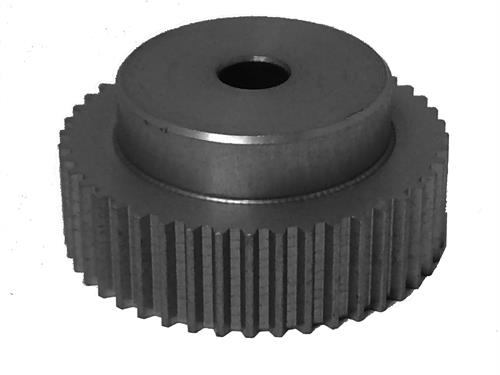

16T2.5/48-0, Timing Pulley, Aluminum

Learn more about 16T2.5/48-0 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.


Product Number 16T2.5/48-0
Teeth 48
Tooth Style T2.5mm
For Belt Width (mm) 6.000
Type 6
Material Aluminum
Bore Type Minimum Plain Bore
Bore (mm) 6.00
Pulley Belt Width (mm) 6.00
Unit System Metric
P.D. (mm) 38.30
O.D. (mm) 37.70
Face Width (mm) 10.00
Overall Length (mm) 16.00
Hub Diameter (mm) 26.00
Weight (lb) 0.08
Part Number Cross Reference 16T2.5/48-0, A 6A32M048NF0606, A6A32M048NF0606
