17-2P03-6CA3, Timing Pulley

17-2P03-6CA3

Click to Enlarge

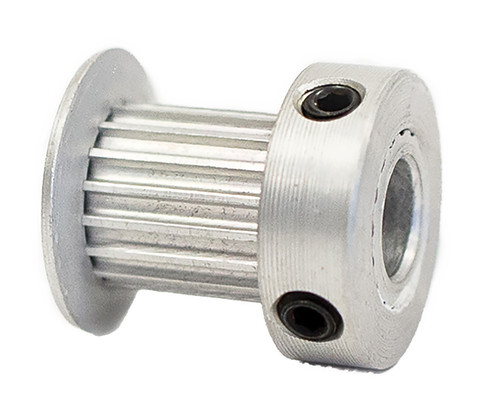

17-2P03-6CA3, Timing Pulley, Aluminum, Clear Anodized

Learn more about 17-2P03-6CA3 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number	17-2P03-6CA3
Teeth	17
Tooth Style	2P
For Belt Width (mm)	3.00
Type	6C
Material	Aluminum
Finish	Clear Anodized
Flange Material	Aluminum
Bore Type	Finished Bore
Bore (in)	0.250
Bore Description	1/4 Inch Finished Bore
Pitch Diameter (in)	0.426
Outside Diameter (in)	0.406
Flange Diameter (in)	0.635
Face Width (in)	0.204
Overall Length (in)	0.438
Hub Diameter (in)	0.635
Min. Bore (in)	0.25
Pulley Belt Width (in)	0.160
Unit System	Inch
P.D. (mm)	11.00
O.D. (mm)	10.30
MOQ	1
Weight (lb)	0.02
Part Number Cross Reference	A 6A51-017DF0308, A6A51-017DF0308, 17-2P03-6CA3, 17-2P03-6CA3
Set Screw Quantity	2
