17L050-6FS6, Timing Pulley

17L050-6FS6 - Steel Imperial Pitch Pulleys

17L050-6FS6

Click to Enlarge

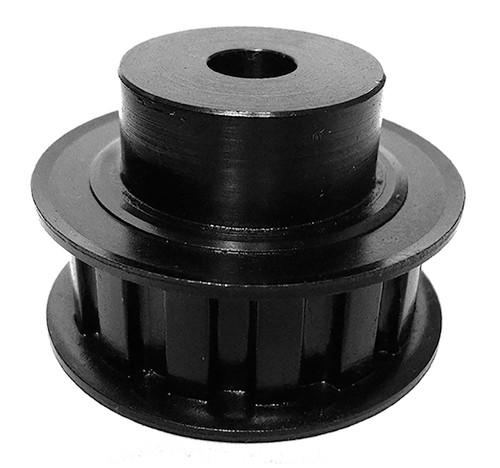

17L050-6FS6, Timing Pulley, Steel, Black Oxide

Learn more about 17L050-6FS6 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number 17L050-6FS6
Teeth 17
Tooth Style L
For Belt Width (in) 0.5000
Type 6F
Material Steel
Finish Black Oxide
Flange Material Steel
Bore Type Minimum Plain Bore
Bore (in) 1/2 Inch Minimum Plain Bore
Pitch Diameter (in) 2.029
Outside Diameter (in) 1.999
Flange Diameter (in) 2.250
Face Width (in) 0.750
Overall Length (in) 1.250
Hub Diameter (in) 1.437
Min. Bore (in) 0.500
Pulley Belt Width (in) 0.570
Unit System Inch
P.D. (mm) 52.00
O.D. (mm) 50.80
MOQ 1
Weight (lb) 0.83
Part Number Cross Reference A 6C4-17DFB5016, A6C4-17DFB5016, PB17L050, 17L050, 17L050-1/2, 20181910, 114301, 17L050, P17L050, M17L050, 17L050-6FS6

Comparable to: A 6C4-17DFB5016, A6C4-17DFB5016, PB17L050, 17L050, 17L050-1/2, 20181910, 114301, 17L050, P17L050, M17L050, 17L050-6FS6

Documentation

Download Catalog
General Characteristics
Pulley Tolerances
Part Number Nomenclature Chart
Drive Alignment Guide
For custom parts click here
REACH Certification
RoHS Certification
