18-5M15-6FA3, Timing Pulley

18-5M15-6FA3 - Aluminum Powerhouse®HTD® Pulleys

Product Details for 18-5M15-6FA3

Comparable to: A 6A25-018DF1508, A6A25-018DF1508, P18-5M-15AL, 78821011, PT018G08L15T

Click to Enlarge

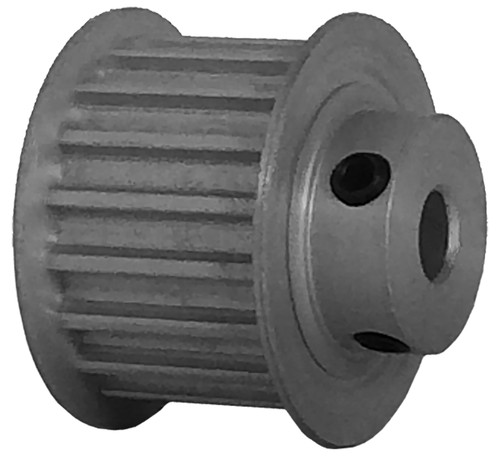

18-5M15-6FA3, Timing Pulley, Aluminum, Clear Anodized

Learn more about 18-5M15-6FA3 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number 18-5M15-6FA3
Teeth 18
Tooth Style HTD 5mm
For Belt Width (mm) 15
Type 6F
Material Aluminum
Finish Clear Anodized
Flange Material Aluminum
Bore Type Finished Bore
Bore (in) 1/4 Inch Finished Bore
Pitch Diameter (in) 1.128
Outside Diameter (in) 1.083
Flange Diameter (in) 1.250
Face Width (in) 0.780
Overall Length (in) 1.025
Hub Diameter (in) 0.687
Min. Bore (in) 0.250
Pulley Belt Width (in) 0.650
Unit System Inch
MOQ 1
Weight (lb) 0.07
Part Number Cross Reference A 6A25-018DF1508, A6A25-018DF1508, P18-5M-15AL, 78821011, PT018G08L15T
Set Screw Quantity 2
