18MP025MIA6, Timing Pulley

18MP025MIA6 - E-Z Lock Hub Aluminum Metric Pulleys

18MP025MIA6

Click to Enlarge

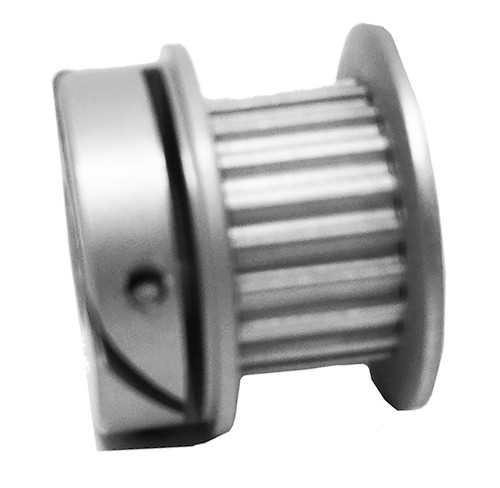

18MP025MIA6, Timing Pulley, Aluminum, Clear Anodized

Learn more about 18MP025MIA6 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number 18MP025MIA6
Teeth 18
Tooth Style MXL
For Belt Width (in) 0.2500
Type 6CI
Material Aluminum
Finish Clear Anodized
Flange Material Aluminum
Bore Type EZ Lock
Bore Description 6 mm Finished Bore
Bore (mm) 6.00
Pitch Diameter (in) 0.458
Outside Diameter (in) 0.438
Flange Diameter (in) 0.635
Face Width (in) 0.330
Unit System Metric
P.D. (mm) 12.00
O.D. (mm) 11.10
Flange Diameter (mm) 16.10
Face Width (mm) 9.90
Overall Length (mm) 14.50
Hub Diameter (mm) 15.90
Number & Screw Size 1 x M3
MOQ 1
Weight (lb) 0.02
Part Number Cross Reference A6D16M018DF6006, 18MP025MIA6, 18MP025MIA6
