18XL025-6FA5, Timing Pulley

18XL025-6FA5

Click to Enlarge

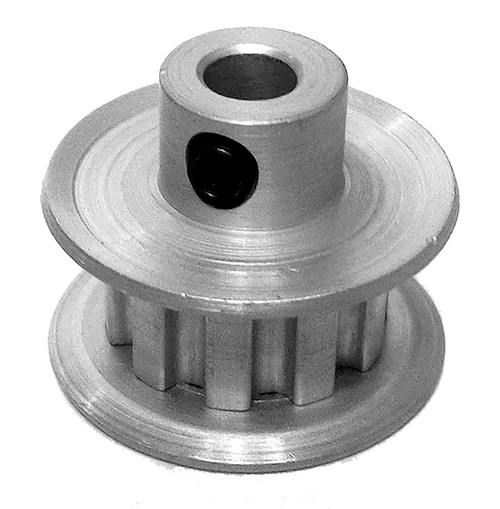

18XL025-6FA5, Timing Pulley, Aluminum, Clear Anodized

Learn more about 18XL025-6FA5 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number	18XL025-6FA5
Teeth	18
Tooth Style	XL
For Belt Width (in)	0.2500
Type	6F
Material	Aluminum
Finish	Clear Anodized
Flange Material	Aluminum
Bore Type	Finished Bore
Bore (in)	0.375
Bore Description	3/8 Inch Finished Bore
Pitch Diameter (in)	1.146
Outside Diameter (in)	1.126
Flange Diameter (in)	1.375
Face Width (in)	0.438
Overall Length (in)	0.688
Hub Diameter (in)	0.812
Min. Bore (in)	0.375
Pulley Belt Width (in)	0.310
Unit System	Inch
P.D. (mm)	29.00
O.D. (mm)	28.60
MOQ	1
Weight (lb)	0.05
Part Number Cross Reference	18XL025-1A X 3/8, 18XL025-6FA5, 18XL025-6FA5
Set Screw Quantity	2
