18XXHR300, Timing Pulley

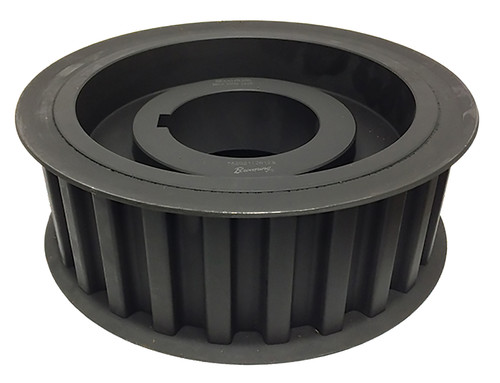

18XXHR300 - Cast Iron Imperial Pitch Pulleys

18XXHR300

18XXHR300 - Cast Iron Imperial Pitch Pulleys Line Drawing

Click to Enlarge

18XXHR300, Timing Pulley, Cast Iron

Learn more about 18XXHR300 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number 18XXHR300
Teeth 18
Tooth Style XXH
For Belt Width (in) 3.0000
Type 11
Material Cast Iron
Flange Material Steel
Bore Type Split Taper
Bore Description Bored for R1 Bushing
Pitch Diameter (in) 7.162
Outside Diameter (in) 7.042
Flange Diameter (in) 7.875
Face Width (in) 3.688
Overall Length (in) 3.969
Min. Bore (in) 1.125
Unit System Inch
Bushing R1
P.D. (mm) 182.00
O.D. (mm) 178.90
MOQ 1
Weight (lb) 17.30
Part Number Cross Reference 18XXHR300, 18XXHR300, 18XXHR300
