19-3M06M6FA6, Timing Pulley

19-3M06M6FA6 - Aluminum Powerhouse®HTD® Pulleys

19-3M06M6FA6

Click to Enlarge

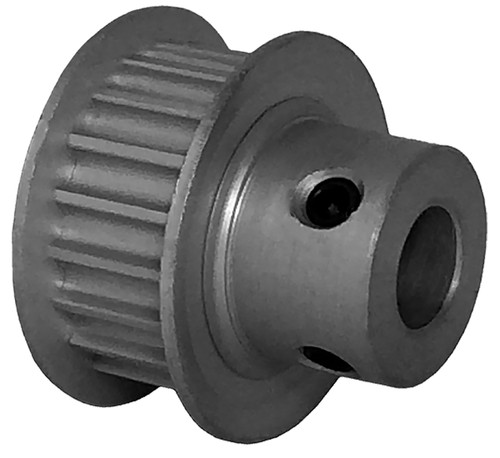

19-3M06M6FA6, Timing Pulley, Aluminum, Clear Anodized

Learn more about 19-3M06M6FA6 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number 19-3M06M6FA6
Teeth 19
Tooth Style HTD3mm
For Belt Width (mm) 6.00
Type 6F
Material Aluminum
Finish Clear Anodized
Flange Material Aluminum
Bore Type Finished Bore
Bore Description 6 mm Finished Bore
Bore (mm) 6.00
Pitch Diameter (in) 0.714
Outside Diameter (in) 0.684
Pulley Belt Width (mm) 7.20
Unit System Metric
P.D. (mm) 18.00
O.D. (mm) 17.40
Flange Diameter (mm) 20.70
Face Width (mm) 9.80
Overall Length (mm) 17.50
Hub Diameter (mm) 11.90
MOQ 1
Weight (lb) 0.02
Part Number Cross Reference A 6A23M019DF0606, A6A23M019DF0606, 19-3M06M6FA6, 19-3M06M6FA6
Set Screw Quantity 2
