19-5M09M6FA8 Powerhouse™ HTD® Pulleys

19-5M09M6FA8, A 6A25M019DF0908, A6A25M019DF0908

Product Details for 19-5M09M6FA8

Comparable to: 19-5M09M6FA8, A 6A25M019DF0908, A6A25M019DF0908

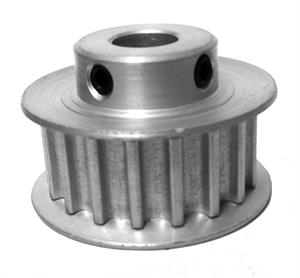

19-5M09M6FA8, Timing Pulley, Powerhouse HTD, 8 mm Bore, Aluminum

Specifications

Product Number 19-5M09M6FA8
Teeth 19
Tooth Style HTD 5mm
For Belt Width (mm) 9.000
Type 6F
Material Aluminum
Finish Clear Anodized
Flange Material Aluminum
Bore Type Finished Bore
Bore (mm) 8.00
Set Screw 2 x M4 @ 90°
Pulley Belt Width (mm) 10.60
Unit System Metric
P.D. (mm) 30.20
O.D. (mm) 29.10
Flange Diameter (mm) 33.30
Face Width (mm) 13.90
Overall Length (mm) 20.20
Hub Diameter (mm) 19.10
Weight (lb) 0.10
Part Number Cross Reference 19-5M09M6FA8, A 6A25M019DF0908, A6A25M019DF0908

Documentation

Download Catalog 2015_BBMAN_CATALOG_107.pdf
General Characteristics gen_char.html
Pulley Tolerances pulley_tol.html
Part Number Nomenclature Chart part_number_explain.pdf
Drive Alignment Guide proper alignment.pdf
For custom parts click here custom.html
REACH Certification 19-5M09M6FA8_REACH_cert
RoHS Certification 19-5M09M6FA8_RoHS_cert
