19-5P15-6FA3 Powerhouse™ Pulleys

19-5P15-6FA3, A 6A55-019DF1508, A6A55-019DF1508, P19-5MGT-15AL, 78451519

Product Details for 19-5P15-6FA3

Comparable to: 19-5P15-6FA3, A 6A55-019DF1508, A6A55-019DF1508, P19-5MGT-15AL, 78451519

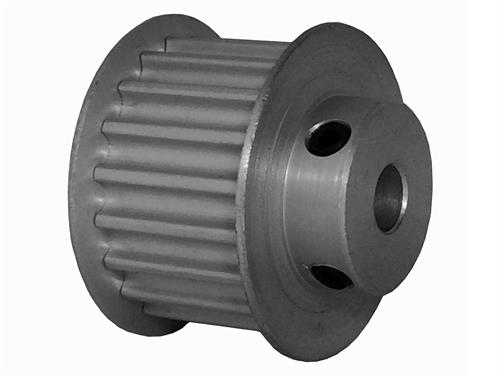

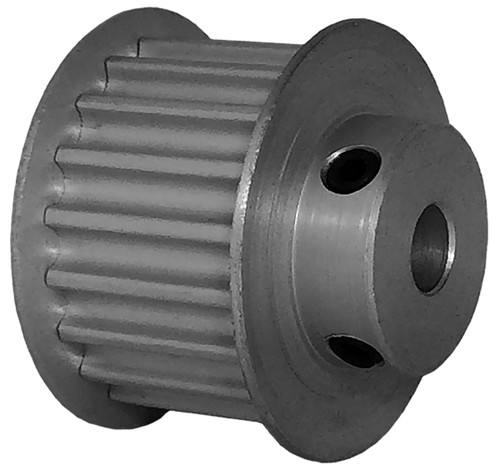

19-5P15-6FA3, Timing Pulley, Powerhouse, 1/4 Inch Bore, Aluminum

Specifications

Product Number 19-5P15-6FA3
Teeth 19
Tooth Style GT 5mm
For Belt Width (mm) 15.000
Type 6F
Material Aluminum
Finish Clear Anodized
Flange Material Aluminum
Bore Type Finished Bore
Bore (in) 1/4 Inch Finished Bore
Pitch Diameter (in) 1.191
Outside Diameter (in) 1.146
Flange Diameter (in) 1.313
Face Width (in) 0.781
Overall Length (in) 1.031
Hub Diameter (in) 0.750
Set Screw 2 x 8-32 @ 90°
Min. Bore (in) 0.25
Unit System Inch
Max. Bore (in) 0.5
Weight (lb) 0.08
Part Number Cross Reference 19-5P15-6FA3, A 6A55-019DF1508, A6A55-019DF1508, P19-5MGT-15AL, 78451519

Documentation

Download Catalog 2015_BBMAN_CATALOG_137.pdf
General Characteristics gen_char.html
Pulley Tolerances pulley_tol.html
Part Number Nomenclature Chart part_number_explain.pdf
Drive Alignment Guide proper alignment.pdf
For custom parts click here custom.html
REACH Certification 19-5P15-6FA3_REACH_cert
RoHS Certification 19-5P15-6FA3_RoHS_cert
