19-5P15-6FS3 Powerhouse® Pulleys

19-5P15-6FS3, P19-5MGT-15-MPB

Product Details for 19-5P15-6FS3

Comparable to: 19-5P15-6FS3, P19-5MGT-15-M

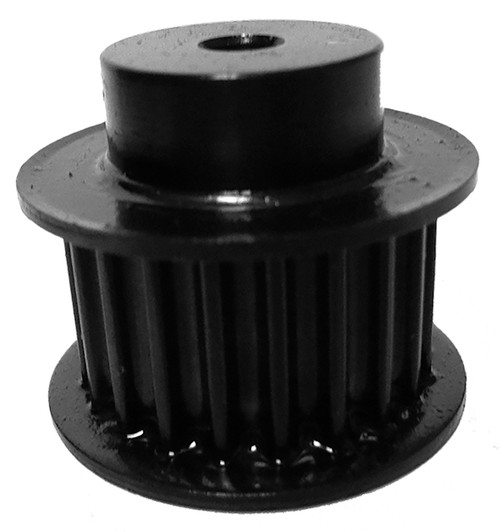

19-5P15-6FS3, Timing Pulley, Powerhouse, 1/4 Inch Bore, Steel

Specifications

Product Number 19-5P15-6FS3
Teeth 19
Tooth Style GT 5mm
For Belt Width (mm) 15.000
Type 6F
Material Steel
Finish Black Oxide
Flange Material Steel
Bore Type Minimum Plain Bore
Bore (in) 1/4 Inch Minimum Plain Bore
Pitch Diameter (in) 1.191
Outside Diameter (in) 1.146
Flange Diameter (in) 1.438
Face Width (in) 0.890
Overall Length (in) 1.250
Hub Diameter (in) 0.880
Min. Bore (in) 0.250
Pulley Belt Width (in) 0.710
Unit System Inch
Max. Bore (in) 0.63
Weight (lb) 0.32
Part Number Cross Reference 19-5P15-6FS3, P19-5MGT-15-M
