1B58SDS, V-Belt Pulley

1B58SDS, 5.8-1B-SDS, 20179343, 581B, 1B58

Product Details for 1B58SDS

Comparable to: QD1A5.6/B5.8, 1B58.SDS, 1B58SDS, 5.8-1B-SDS, 20179343, 581B, 1B5.8, 1/B580SDS, 82245770, 1B58, 1BQ58

Click to Enlarge

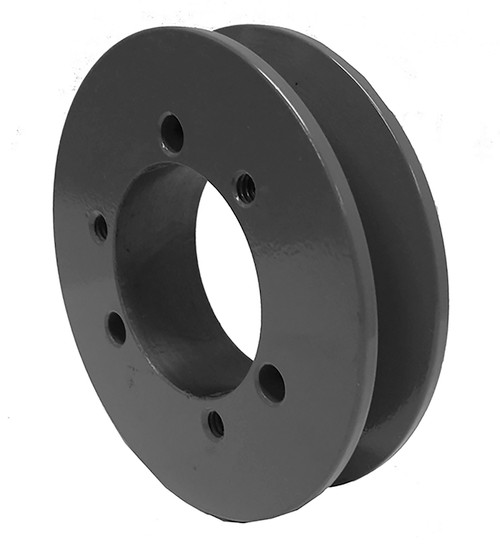

1B58SDS, V-Belt Pulley, Cast Iron

Learn more about 1B58SDS V-Belt Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number 1B58SDS
Type C2
Material Cast Iron
Bore Type QD
Bore (in) SDS
Outside Diameter (in) 6.150
Face Width (in) 0.875
Min. Bore (in) 0.500
Unit System Inch
Bushing SDS
MOQ 1
Pitch Dia. "A" 5.400
Pitch Dia. "B" 5.800
Sheave Type A-B Combination
For Belt Type A or B
Weight (lb) 5.90
Part Number Cross Reference QD1A5.6/B5.8, 1B58.SDS, 1B58SDS, 5.8-1B-SDS, 20179343, 581B, 1B5.8, 1/B580SDS, 82245770, 1B58, 1BQ58
Grooves 1
