1B60SDS, V-Belt Pulley

1B60SDS, 6.0-1B-SDS, 20179366, 601B, 1B60

Product Details for 1B60SDS

Comparable to: QD1A5.8/B6.0, 1B60.SDS, 1B60SDS, 6.0-1B-SDS, 20179366, 601B, 1B6.0, 1/B600SDS, 82245689, 1B60, 1BQ60

Click to Enlarge

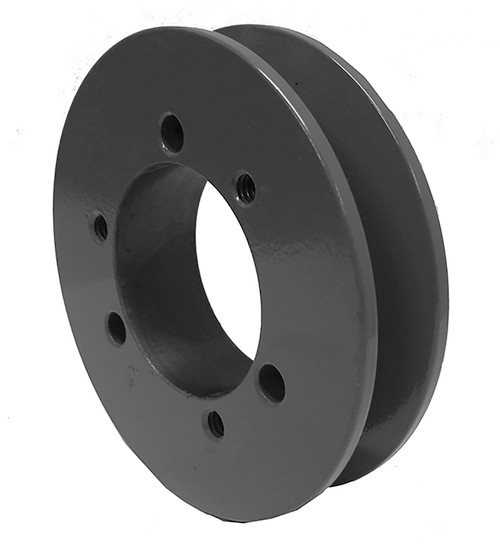

1B60SDS, V-Belt Pulley, Cast Iron

Learn more about 1B60SDS V-Belt Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number 1B60SDS
Type C2
Material Cast Iron
Bore Type QD
Bore (in) SDS
Outside Diameter (in) 6.350
Face Width (in) 0.875
Min. Bore (in) 0.500
Unit System Inch
Bushing SDS
MOQ 1
Pitch Dia. "A" 5.600
Pitch Dia. "B" 6.000
Sheave Type A-B Combination
For Belt Type A or B
Weight (lb) 6.20
Part Number Cross Reference QD1A5.8/B6.0, 1B60.SDS, 1B60SDS, 6.0-1B-SDS, 20179366, 601B, 1B6.0, 1/B600SDS, 82245689, 1B60, 1BQ60
Grooves 1
