1C130SF, V-Belt Pulley

1C130SF, QD1C13

1C130SF

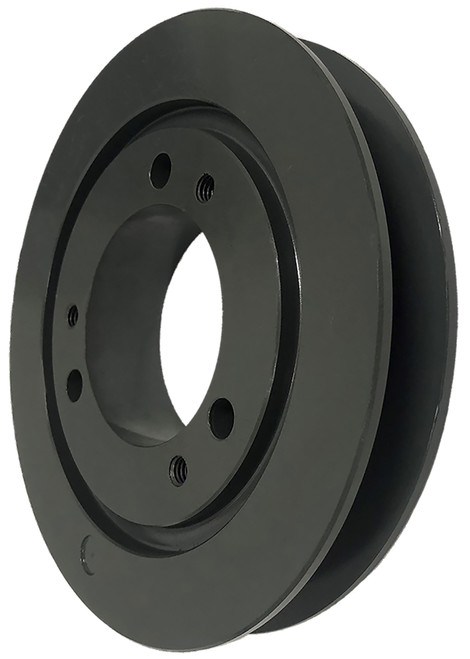

1C130SF, V-Belt Pulley, Cast Iron

B&B Manufacturing carries 1C130SF to accommodate the different industries we serve. Contact us today for a free quote!

Specifications

Product Number 1C130SF
Type D-3
Material Cast Iron
Bore Type QD
Bore (in) Bored for SF Bushing
Outside Diameter (in) 13.400
Face Width (in) 1.250
Overall Length (in) 2.063
Min. Bore (in) 0.500
Unit System Inch
Bushing SF
L (in) 2.0625
MOQ 1
Weight (lb) 19.10
Part Number Cross Reference QD1C13.0, 1C130.SF, 13.0-1C-SF PULLEY, 20178982, 1C13.0, 1/C1300SF, 1C130SF
Grooves 1

Related Products

Comparable to: QD1C13.0, 1C130.SF, 13.0-1C-SF PULLEY, 20178982, 1C13.0, 1/C1300SF, 1C130SF
