20-3M09M6FA6, Timing Pulley

20-3M09M6FA6

Click to Enlarge

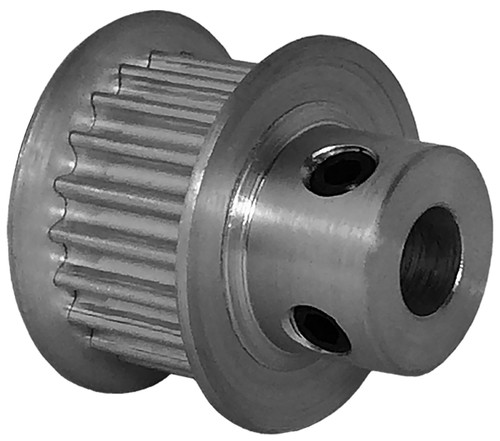

20-3M09M6FA6, Timing Pulley, Aluminum, Clear Anodized

Learn more about 20-3M09M6FA6 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number	20-3M09M6FA6
Teeth	20
Tooth Style	HTD3mm
For Belt Width (mm)	9.00
Type	6F
Material	Aluminum
Finish	Clear Anodized
Flange Material	Aluminum
Bore Type	Finished Bore
Bore Description	6 mm Finished Bore
Bore (mm)	6.00
Pitch Diameter (in)	0.752
Outside Diameter (in)	0.722
Pulley Belt Width (mm)	10.20
Unit System	Metric
P.D. (mm)	19.00
O.D. (mm)	18.30
Flange Diameter (mm)	22.70
Face Width (mm)	12.80
Overall Length (mm)	20.60
Hub Diameter (mm)	12.70
MOQ	1
Weight (lb)	0.02
Part Number Cross Reference	A 6A23M020DF0906, A6A23M020DF0906, TP3A6W9M-20, 20-3M09M6FA6 AL HTD SPROCKET QTE, 21059861, 20-3M09M6FA6, 20-3M09M6FA6
Set Screw Quantity	2
