20-3P06M6FA6, Timing Pulley

20-3P06M6FA6

Buy Online

Download CAD View 3D Model Choose a CAD format

View Spec Sheet

Click to Enlarge

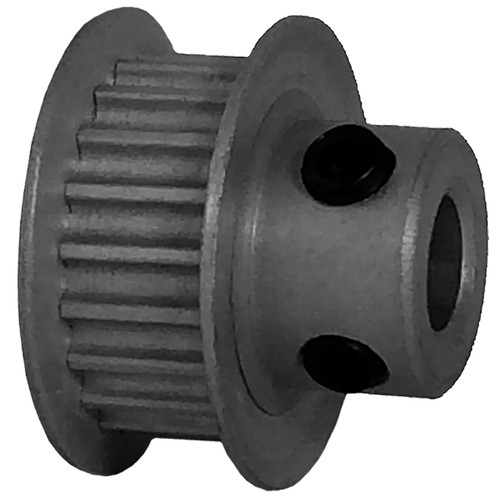

20-3P06M6FA6, Timing Pulley, Aluminum, Clear Anodized

B&B Manufacturing carries 20-3P06M6FA6 to accommodate the different industries we serve. Contact us today for a free quote!

Specifications

Product Number	20-3P06M6FA6
Teeth	20
Tooth Style	3P
For Belt Width (mm)	6.00
Type	6F
Material	Aluminum
Finish	Clear Anodized
Flange Material	Aluminum
Bore Type	Finished Bore
Bore Description	6 mm Finished Bore
Bore (mm)	6.00
Pitch Diameter (in)	0.752
Outside Diameter (in)	0.722
Unit System	Metric
P.D. (mm)	19.00
O.D. (mm)	18.30
Flange Diameter (mm)	22.70
MOQ	1
Weight (lb)	0.02
Part Number Cross Reference	20-3P06M6FA6, 20-3P06M6FA6

Comparable to: 20-3P06M6FA6, 20-3P06M6FA6
