20-5M09-6FA6, Timing Pulley

20-5M09-6FA6

Buy Online

Download CAD View 3D Model Choose a CAD format

View Spec Sheet

Click to Enlarge

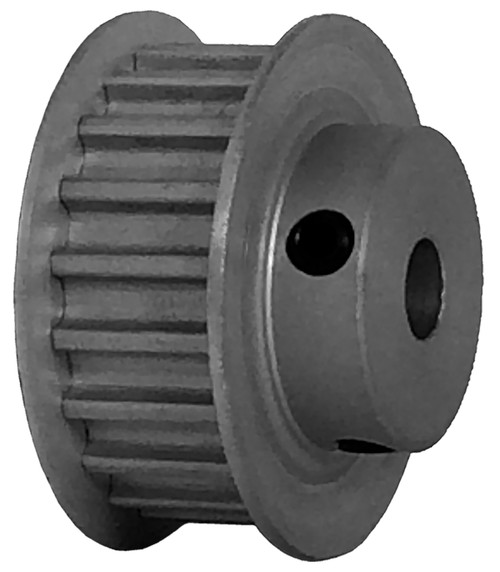

20-5M09-6FA6, Timing Pulley, Aluminum, Clear Anodized

B&B Manufacturing carries 20-5M09-6FA6 to accommodate the different industries we serve. Contact us today for a free quote!

Specifications

Product Number	20-5M09-6FA6
Teeth	20
Tooth Style	HTD5mm
For Belt Width (mm)	9.00
Type	6F
Material	Aluminum
Finish	Clear Anodized
Flange Material	Aluminum
Bore Type	Finished Bore
Bore (in)	0.500
Bore Description	1/2 Inch Finished Bore
Pitch Diameter (in)	1.253
Outside Diameter (in)	1.208
Flange Diameter (in)	1.375
Unit System	Inch
P.D. (mm)	32.00
O.D. (mm)	30.70
MOQ	1
Weight (lb)	0.06
Part Number Cross Reference	20-5M09-6FA6, 20-5M09-6FA6

Comparable to: 20-5M09-6FA6, 20-5M09-6FA6
