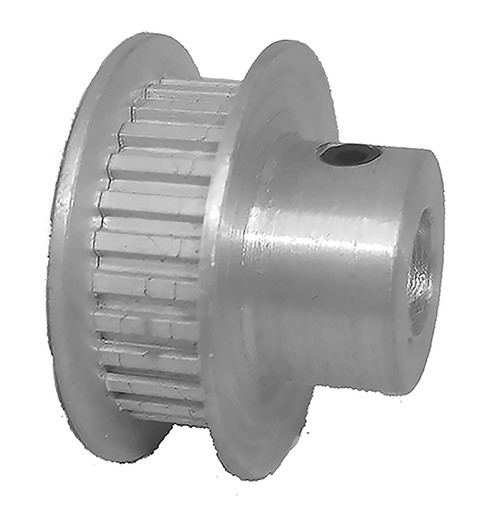

20LT187-6FA2, Timing Pulley

20LT187-6FA2 - Aluminum Imperial Pitch Pulleys

20LT187-6FA2

20LT187-6FA2 - Aluminum Imperial Pitch Pulleys Line Drawing

Click to Enlarge

20LT187-6FA2, Timing Pulley, Aluminum, Clear Anodized

Learn more about 20LT187-6FA2 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number 20LT187-6FA2
Teeth 20
Tooth Style LT
For Belt Width (in) 0.1875
Type 6F
Material Aluminum
Finish Clear Anodized
Flange Material Aluminum
Bore Type Finished Bore
Bore (in) 0.188
Bore Description 3/16 Inch Finished Bore
Pitch Diameter (in) 0.519
Outside Diameter (in) 0.499
Flange Diameter (in) 0.685
Face Width (in) 0.324
Overall Length (in) 0.563
Hub Diameter (in) 0.364
Min. Bore (in) 0.1875
Pulley Belt Width (in) 0.220
Unit System Inch
P.D. (mm) 13.00
O.D. (mm) 12.70
MOQ 1
Weight (lb) 0.02
Part Number Cross Reference 20LT187-6FA2
Set Screw Quantity 2
