20MP025MIA6, Timing Pulley

20MP025MIA6

Click to Enlarge

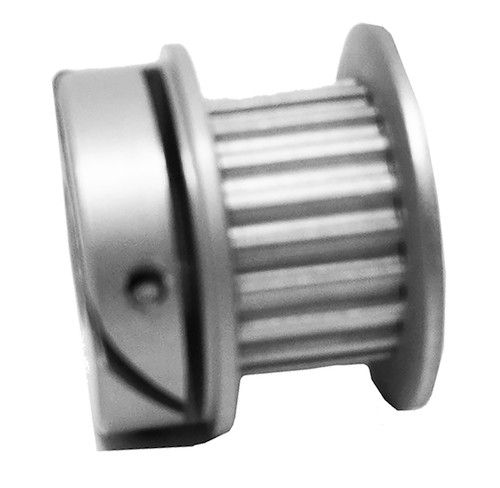

20MP025MIA6, Timing Pulley, Aluminum, Clear Anodized

Learn more about 20MP025MIA6 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number	20MP025MIA6
Teeth	20
Tooth Style	MXL
For Belt Width (in)	0.2500
Type	6CI
Material	Aluminum
Finish	Clear Anodized
Flange Material	Aluminum
Bore Type	EZ Lock
Bore Description	6 mm Finished Bore
Bore (mm)	6.00
Pitch Diameter (in)	0.509
Outside Diameter (in)	0.489
Flange Diameter (in)	0.685
Face Width (in)	0.389
Unit System	Metric
P.D. (mm)	13.00
O.D. (mm)	12.40
Flange Diameter (mm)	17.40
Face Width (mm)	9.90
Overall Length (mm)	14.50
Hub Diameter (mm)	15.90
Number & Screw Size	1 x M3
MOQ	1
Weight (lb)	0.02
Part Number Cross Reference	A6D16M020DF6006, 20MP025MIA6, 20MP025MIA6
