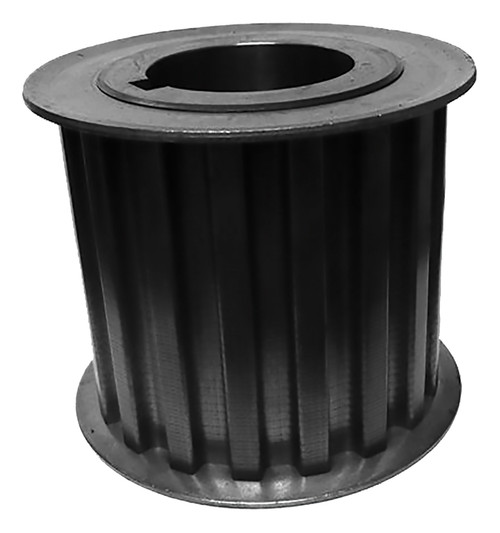

20XHQ400, Timing Pulley

20XHQ400 - Cast Iron Imperial Pitch Pulleys

20XHQ400

20XHQ400 - Cast Iron Imperial Pitch Pulleys Line Drawing

Click to Enlarge

20XHQ400, Timing Pulley, Cast Iron

Learn more about 20XHQ400 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number 20XHQ400
Teeth 20
Tooth Style XH
For Belt Width (in) 4.0000
Type 11
Material Ductile Iron
Flange Material Steel
Bore Type Split Taper
Bore Description Bored for Q2 Bushing
Pitch Diameter (in) 5.570
Outside Diameter (in) 5.460
Flange Diameter (in) 6.125
Face Width (in) 4.688
Overall Length (in) 4.969
Min. Bore (in) 1
Unit System Inch
Bushing Q2
P.D. (mm) 142.00
O.D. (mm) 138.70
MOQ 1
Weight (lb) 15.58
Part Number Cross Reference 20XHQ400, 20XHQ400, 20XHQ400
