20XL037-6FA7, Timing Pulley

20XL037-6FA7

Buy Online

Download CAD View 3D Model Choose a CAD format

View Spec Sheet

Click to Enlarge

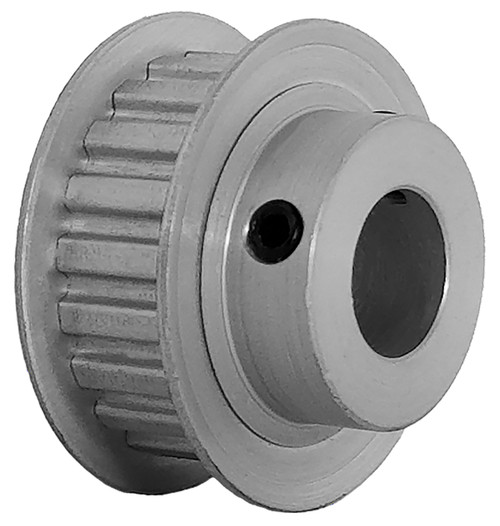

20XL037-6FA7, Timing Pulley, Aluminum, Clear Anodized,

B&B Manufacturing carries 20XL037-6FA7 to accommodate the different industries we serve. Contact us today for a free quote!

Specifications

Product Number	20XL037-6FA7
Teeth	20
Tooth Style	XL
For Belt Width (in)	0.3750
Type	6F
Material	Aluminum
Finish	Clear Anodized
Flange Material	Aluminum
Bore Type	Finished Bore
Bore (in)	0.625
Bore Description	5/8 Inch Finished Bore
Pitch Diameter (in)	1.273
Outside Diameter (in)	1.253
Flange Diameter (in)	1.500
Min. Bore (in)	0.625
Unit System	Inch
P.D. (mm)	32.00
O.D. (mm)	31.80
MOQ	1
Weight (lb)	0.07
Part Number Cross Reference	20XL037-6FA7, 20XL037-6FA7

Comparable to: 20XL037-6FA7, 20XL037-6FA7
