21-2P06-6FA2, Timing Pulley

21-2P06-6FA2

Click to Enlarge

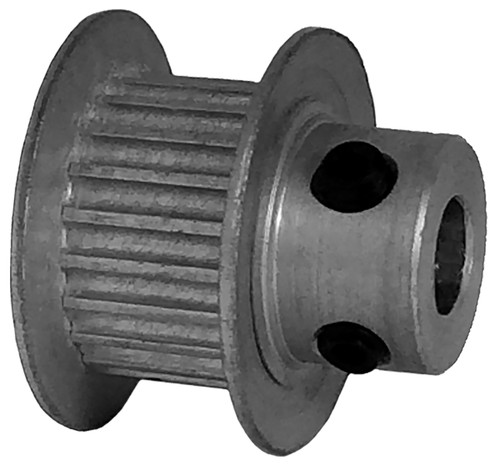

21-2P06-6FA2, Timing Pulley, Aluminum, Clear Anodized,

Learn more about 21-2P06-6FA2 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number	21-2P06-6FA2
Teeth	21
Tooth Style	2P
For Belt Width (mm)	6.00
Type	6F
Material	Aluminum
Finish	Clear Anodized
Flange Material	Aluminum
Bore Type	Finished Bore
Bore (in)	0.188
Bore Description	3/16 Inch Finished Bore
Pitch Diameter (in)	0.526
Outside Diameter (in)	0.506
Flange Diameter (in)	0.710
Face Width (in)	0.389
Overall Length (in)	0.625
Hub Diameter (in)	0.390
Min. Bore (in)	0.1875
Pulley Belt Width (in)	0.290
Unit System	Inch
P.D. (mm)	13.00
O.D. (mm)	12.90
MOQ	1
Weight (lb)	0.01
Part Number Cross Reference	A 6A51-021DF0606, A6A51-021DF0606, 2MR-21S-06, 2MR-21S-06, TP2A3W6-21, 21-2GT06-1A X 3/16, 21-2P06-6FA2, 21-2P06-6FA2
Set Screw Quantity	2
