21-8M-PS10A Bar Stock

21-8M-PS10A, 21-8M-PS-10A

Product Details for 21-8M-PS10A

Comparable to: 21-8M-PS10A, 21-8M-PS-10A

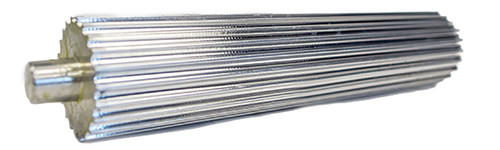

21-8M-PS10A, Timing Pulley Stock, Powerhouse HTD, 10 Inch Usable Length, Aluminum

Specifications

Product Number 21-8M-PS10A
Teeth 21
Tooth Style HTD 8mm
Material Aluminum
Pitch Diameter (in) 2.105
Outside Diameter (in) 2.051
Overall Length (in) 11.000
Unit System Inch
Min. Usable Length (in) 10.000
P.D. (mm) 53.50
O.D. (mm) 52.10
Weight (lb) 2.90
List Price (1-9 Qty.) (USD) 95.76
Discount Price (10-24 Qty.) (USD) 71.82
Discount Price (25-49 Qty.) (USD) 57.46
Discount Price (50-99 Qty.) (USD) 52.67
Part Number Cross Reference 21-8M-PS10A, 21-8M-PS-10A

Documentation

Download Catalog 2015_BBMAN_CATALOG_303.pdf
For custom parts click here custom.html
REACH Certification 21-8M-PS10A_REACH_cert
RoHS Certification 21-8M-PS10A_RoHS_cert
