21-8M-PS10S Bar Stock

21-8M-PS10S, 21-8M-PS-10S

Product Details for 21-8M-PS10S

Comparable to: 21-8M-PS10S, 21-8M-PS-10S

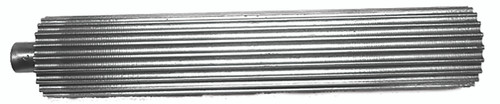

21-8M-PS10S, Timing Pulley Stock, Powerhouse HTD, 10 Inch Usable Length, Steel

Specifications

Product Number 21-8M-PS10S
Teeth 21
Tooth Style HTD 8mm
Material Steel
Pitch Diameter (in) 2.105
Outside Diameter (in) 2.051
Overall Length (in) 11.000
Unit System Inch
Min. Usable Length (in) 10.000
P.D. (mm) 53.50
O.D. (mm) 52.10
Weight (lb) 9.71
List Price (1-9 Qty.) (USD) 112.33
Discount Price (10-24 Qty.) (USD) 89.86
Discount Price (25-49 Qty.) (USD) 78.63
Discount Price (50-99 Qty.) (USD) 67.4
Part Number Cross Reference 21-8M-PS10S, 21-8M-PS-10S

Documentation

Download Catalog 2015_BBMAN_CATALOG_305.pdf
For custom parts click here custom.html
REACH Certification 21-8M-PS10S_REACH_cert
RoHS Certification 21-8M-PS10S_RoHS_cert
